Swivel Jockey Wheel Side Wind For Caravan Heavy Duty

Swivel Jockey Wheel Side Wind For Caravan Heavy Duty
Swivel Jockey Wheel Side Wind For Caravan Heavy DutySwivel Jockey Wheel Side Wind For Caravan Heavy Duty
CategoriesTrailer Jockey Wheels
AlbumView larger image
BrandHaway
ModelCustom
Usagetrailer parts
Surface FinishHot Dip Galvanized or zinc plating
Tube sizeφ58mm
Capacity1500 LBS
Wheel Size8''
MOQ200
FOB portQingdao
Terms of PaymentL/C, D/P, Western Union, T/T, Paypal
Download DOC
Update Time2020-10-21
Detail Information

Factory video

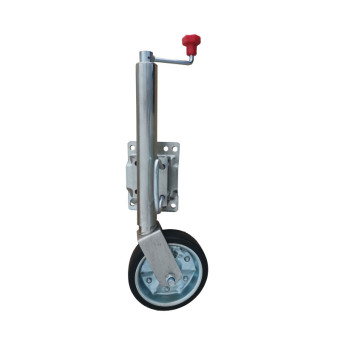

8 Inch Swivel Jockey Wheel Stand Side Wind manufacturer

SPECIFICATION

CapacityWheel Size  Retracted HeightExtended HeightTube Size Surface Treatment
350LBS8'' rubber wheel600mm830mmφ48mmZinc Plating
350LBS8'' rubber wheel520mm750mmφ48mmZinc Plating
750LBS6'' plastic wheel600mm830mmφ51mmZinc Plating
1500LBS8'' rubber wheel640mm870mmφ50mmZinc Plating
1500LBS8'' plastic wheel730mm960mmφ51mmZinc Plating
1500LBS8'' plastic wheel620mm880mmφ48mmHot Dip Galvanized
1500LBS8'' rubber wheel620mm880mmφ48mmZinc Plating
2000LBS2 x 6'' plastic wheel600mm860mmφ57mmZinc Plating

FEATURES

  • The heavy duty jockey wheel is made of sturdy steel material. Outside tube is φ58mm and inside tube is φ52mm with 8'' plastic wheel.
  • It can be used on heavy duty trailers like boat trailer, utility trailer, caravan etc.
  • The inner tube rotates so the wheel can have a 360 degrees rotation in any condition.
  • Swivel design allows you to make jockey wheel down for use and parallel to the trailer for storage.
  • Just pull the handle and it can go in and locks jack into position whether we've got it in the upright or in the stored position.
  • There are 4 holes on each side of mounting bracket. They can suit tongue size of 50mm, 75mm and 100mm.
  • This is jockey wheel is for heavy duty trailers. We also make jockey wheels for light duty trailers, which capacity is 500LBS, 750LBS and 1000LBS.
  • The jockey wheel can be zinc plating surface finish or hot dip galvanized surface finish. Hot Dip galvanized jockey wheels are mainly used on boat trailers.

PRODUCTS DISPLAY

  • 8 Inch Swivel Jockey Wheel Stand Side Wind
  • 8 Inch Swivel Jockey Wheel Stand Side Wind


  • 8 Inch Swivel Jockey Wheel Stand Side Wind

package

8 Inch Swivel Jockey Wheel Stand Side Wind

8 Inch Swivel Jockey Wheel Stand Side Wind  package

8 Inch Swivel Jockey Wheel Stand Side Wind package
