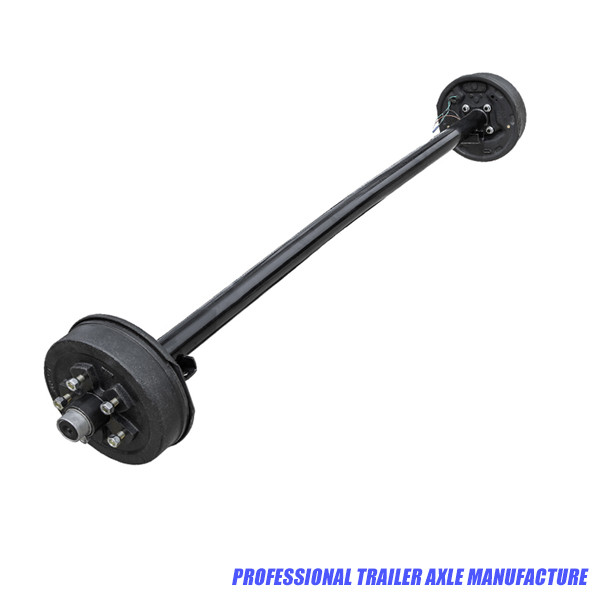

3500 LB Trailer Axle With Electric Brakes

3500 LB Trailer Axle With Electric Brakes
CategoriesLeaf Spring Trailer Axles
BrandHaway
Model3500 lbs with brakes
Typeleaf spring trailer axle
Capacity3500 lbs
Surface Finishblack painted
Brakeelectric brakes
Brake size10''
bolt pattern5 bolts on 4.5''
FOB portQingdao
Terms of PaymentL/C, D/P, Western Union, T/T, Paypal
Download DOC
Update Time2021-06-16
Detail Information


 3500 LB Trailer Axles With Electric Brakes Specifications


● Weight capacity: 3500 lbs


● Beam tube size: φ60mm


● Hub face: custom length


● Spring center distance: based on customer's requirement


● Brake: 10'' electric brake


● Hand Brake: option


● Drum bolt pattern: 5 bolts on 4.5’’


● Outer bearing: L44649/10


● Inner bearing: L68149/11


● Dust cam diameter: 50.3mm


● Grease nipple: option


● Surface finish: black painted



Features of 3500 pound trailer axle with electric brakes


1. All the electric trailer brakes and drums are painted surface.


2. The electric brakes in American market and Australia market are a little different. We supply bother American style and Australian style braked axles.


3. 3500 lbs trailer axles kits with brakes are also available here.


Contact us to get quotation now.




Frequently Asked Questions And Answers about 3500 LB Trailer Axle With Electric Brakes


●  Do you supply 3000 lb trailer axle?


3500 lb trailer axle can be used on 3000 lb capacity trailers too.



●  Do you supply 3500 lb trailer axle spindle separately?


Yes, we supply trailer axle spindle too. Please contact us and we will give you spindle price.



●  Do you supply 3500 lbs trailer axle with brakes bolt pattern 5  on 5.5''?


Must 3500 lb trailer axles are with bolt pattern of 5 bolts on 4.5''. But 5 bolts on 5.5'' can be supplied too. Please tell your requirement to our sales team.



●  Are your 3500 lbs trailer axles are E-Z lube?


 Yes, we supply axle with E-Z lube spindles. There is grease nipple on the spindle, which make it easy and quick to lubricating the bearings.


E-Z axle must use E-Z lube grease cap on the hub or drums. There is a rubber cap in the middle. Remove the rubber cap then can lubricate bearings.
