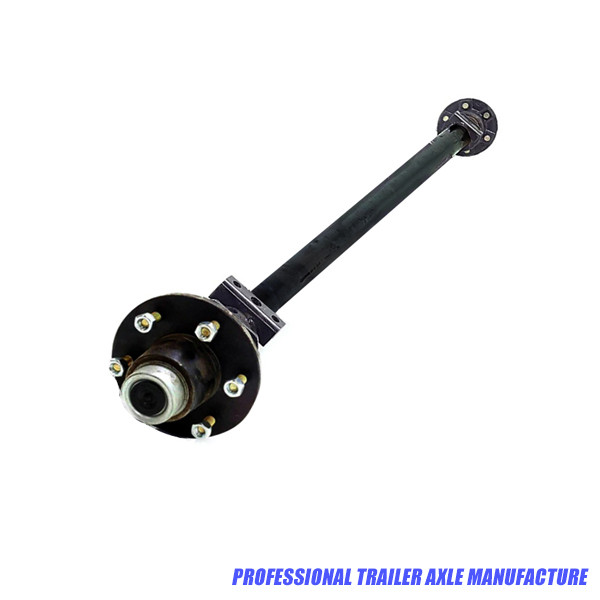

5200 lb Trailer Axles Specifications
● Weight capacity: 5200 lbs
● Beam tube size: φ76mm
● Hub face distance: supply different length trailer axles based on customer's requirement
● Spring center distance: custom
● Hub: idler hub
● Bolt pattern: 6 bolts on 5.5’’
● Outer bearing: 22580/20
● Inner bearing: 15123/245
● Dust cam diameter: 62mm
● Grease nipple: option
● Surface finish: black painted
● Brake mounting flange: (option)
Featrure of 5200 lb trailer axles
● Use sturdy φ76mm round tube as 5200 lb trailer axle beam.
● Welding was done by robot welding machine to unsure stable and high quality.
● We use Chinese famous brand bearing on the axles hubs.
● Custom build:
As a trailer axle manufacturer we do OEM and make axles as your specification. The hub face and spring center distance determined by customers needs.
● We supply 5200 pound trailer axle with idler hub and 5200 lb trailer axle with electric brakes as well.
The complete trailer axle kits including leaf springs, tie plates, U bolts, nuts are available too.
Contact us to get quotation now.
Frequently Asked Questions And Answers about 5200 LBS Trailer Axles
● Do you supply 5200 lb trailer axle with brakes?
Yes, 5200 lb trailer axle with electric brake are available too.
● Do you supply 6000 lb trailer axle with idler hub?
Yes, 6000 lb trailer axle is very similar to 5200 lb trailer axles. Idler hubs are same.
● Are there 6 bolts on this axle?
Yes, the bolt pattern for 5200lb and 6000 lb trailer is 6 bolts on 5.5''. So there are 6 bolts on each hub.
● What is the dust cap size?
Diameter of the dust cap used on 6000 lb trailer axle are 62mm.
● Are your axle are E-Z lube axle?
We can supply E-Z lube axle, which with grease nipple and special dust cap.
● Are the 5200 lbs axles no brake with brake hubs mounting flange?
This is depends on your requirement. If you need the brake flange then we can added on. It is not a difficult thing.
